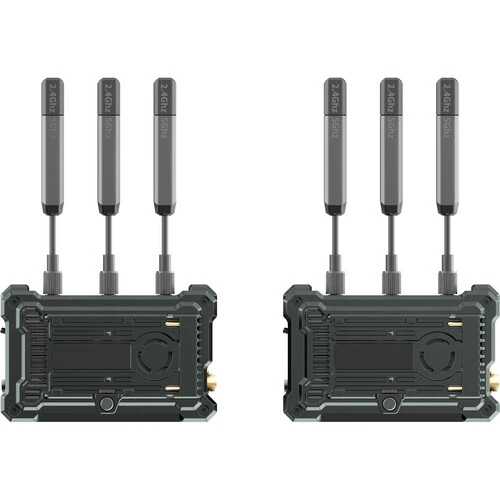

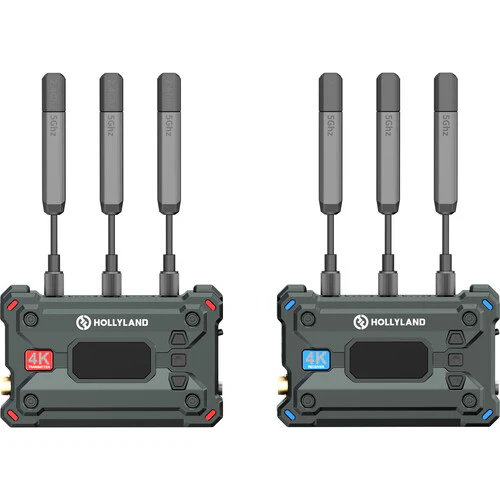

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System
Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System Specifications
Video Input (Transmitter):
1× HDMI 1.4b Input, 1× BNC (3G-SDI) Input
Video Output (Receiver):
1× HDMI 1.4b Output, 1× BNC (3G-SDI) Output
Video Formats (HDMI):
UHD 4K30, 1080p, 1080i, 720p (multiple frame rates)
Video Formats (SDI):
1080p, 1080i, 720p (multiple frame rates)
Latency:
50 ms
Wireless Range:
Up to 1300 ft / 396.2 m (LOS) | 650 ft / 198.1 m (Broadcast mode)
Power Consumption:
TX: 11 W | RX: 8 W
Antenna I/O:
3× RP-SMA Male
Power Input:
6 to 16 VDC (Barrel Input)
Other I/O:
USB-C
Wi-Fi:
Wi-Fi 4 (802.11n), Dual-Band (2.4 & 5 GHz)
Mobile App Support:
Android & iOS
Wireless Video Compression:
Uncompressed
Timecode Support:
Yes
Frequency Range:
5.15 to 5.85 GHz | 2.412 to 2.484 GHz
Channel Bandwidth:
40 MHz / 20 MHz
RF Sensitivity:
-85 dBm
Mounting:
1× 1/4"-20 Female (Bottom)
Operating Conditions:
-10°C to 45°C
Storage Conditions:
-40°C to 60°C
Material:
Magnesium
Dimensions:
112 × 71.2 × 34.1 mm
Weight:
207 g
